Westcott Designs Preload Collar Lift Kit For Tacoma (2024-Current)

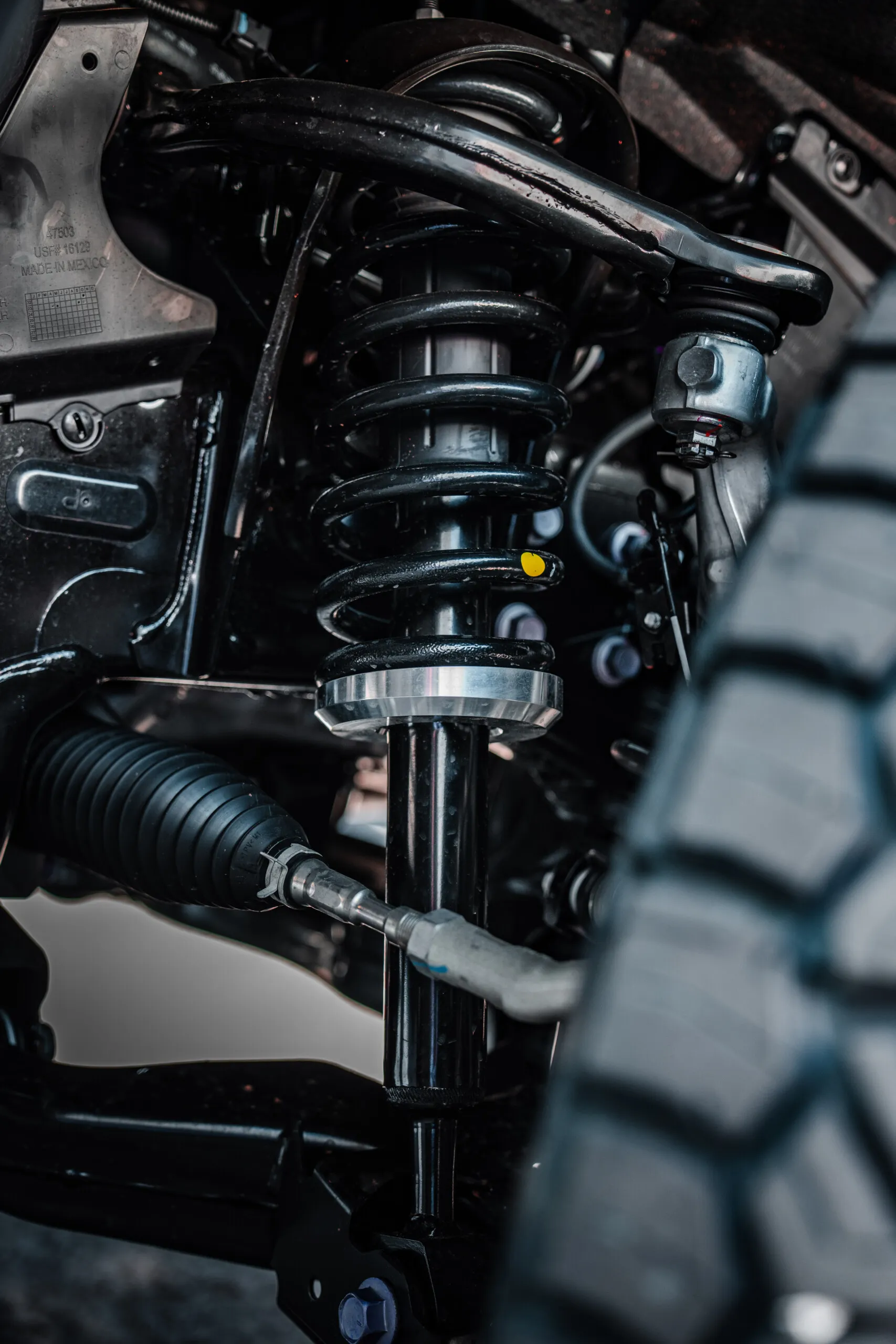

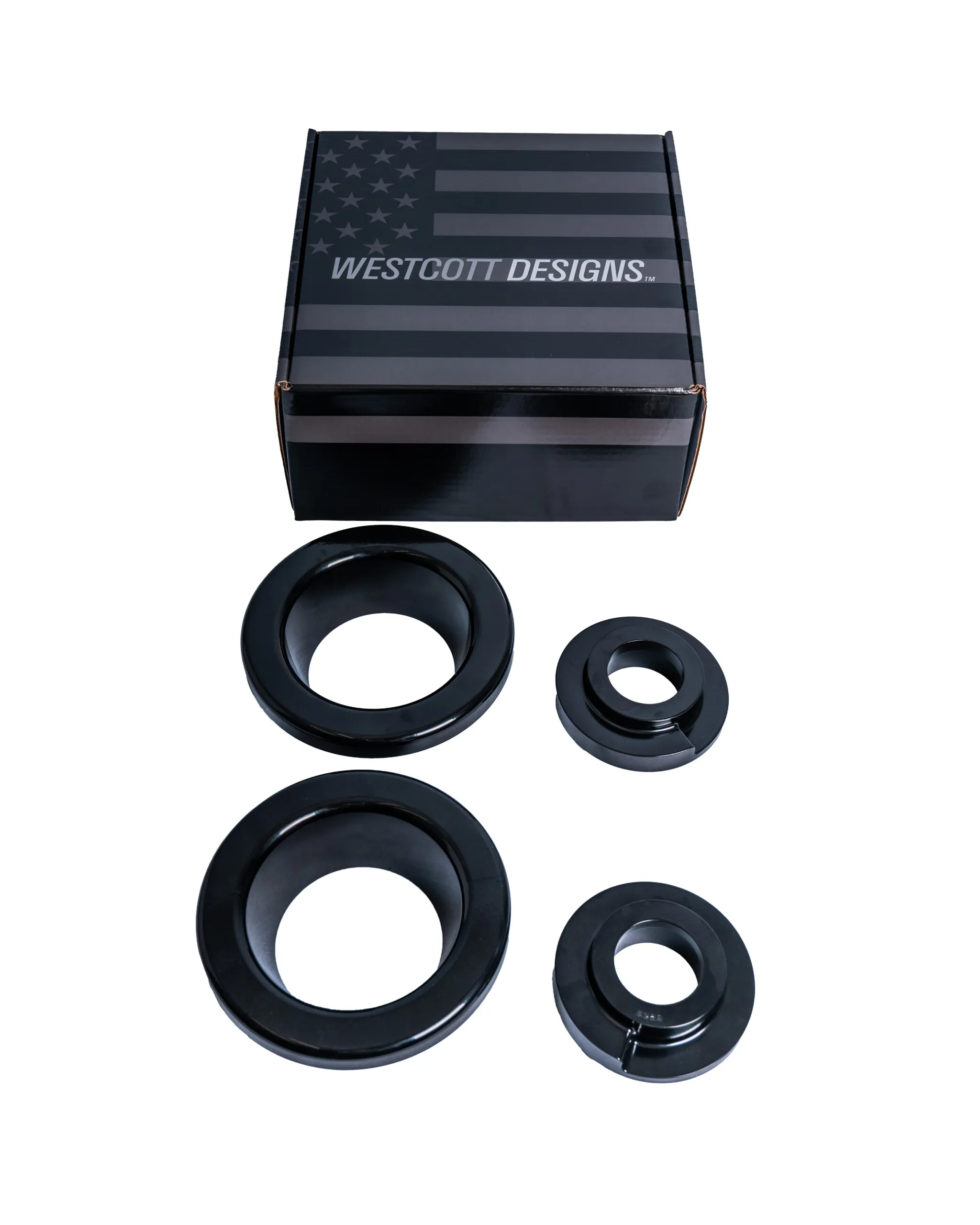

Westcott Designs preload collar lift kit for the all-new 2024-2026 Toyota Tacoma! This kit features all new CNC machined components and are available in both raw aluminum and hard black anodized finishes for that true “like factory” look. This kit gives you 2.50” of lift in the front and .75” in the rear using your factory shocks and springs and includes complete hardware for an easy install. This is NOT your traditional spacer lift kit, you retain your factory ride quality, factory suspension geometry and after installation the vehicle should be aligned to the following specifications:

• Camber: 0.2 – 0.4 positive
• Caster Split: 0.4 with higher on the right
• Toe: 0.1 toe out on each side (total 0.2 toe out)

It does NOT require new UCA’s, and you can run up to a 35” tire with the proper offset wheel.

These kits along with all Westcott products have been designed and built here in house Phoenix, AZ in the great USA!

*Patent Pending

*No shocks are included with any preload collar lift kits

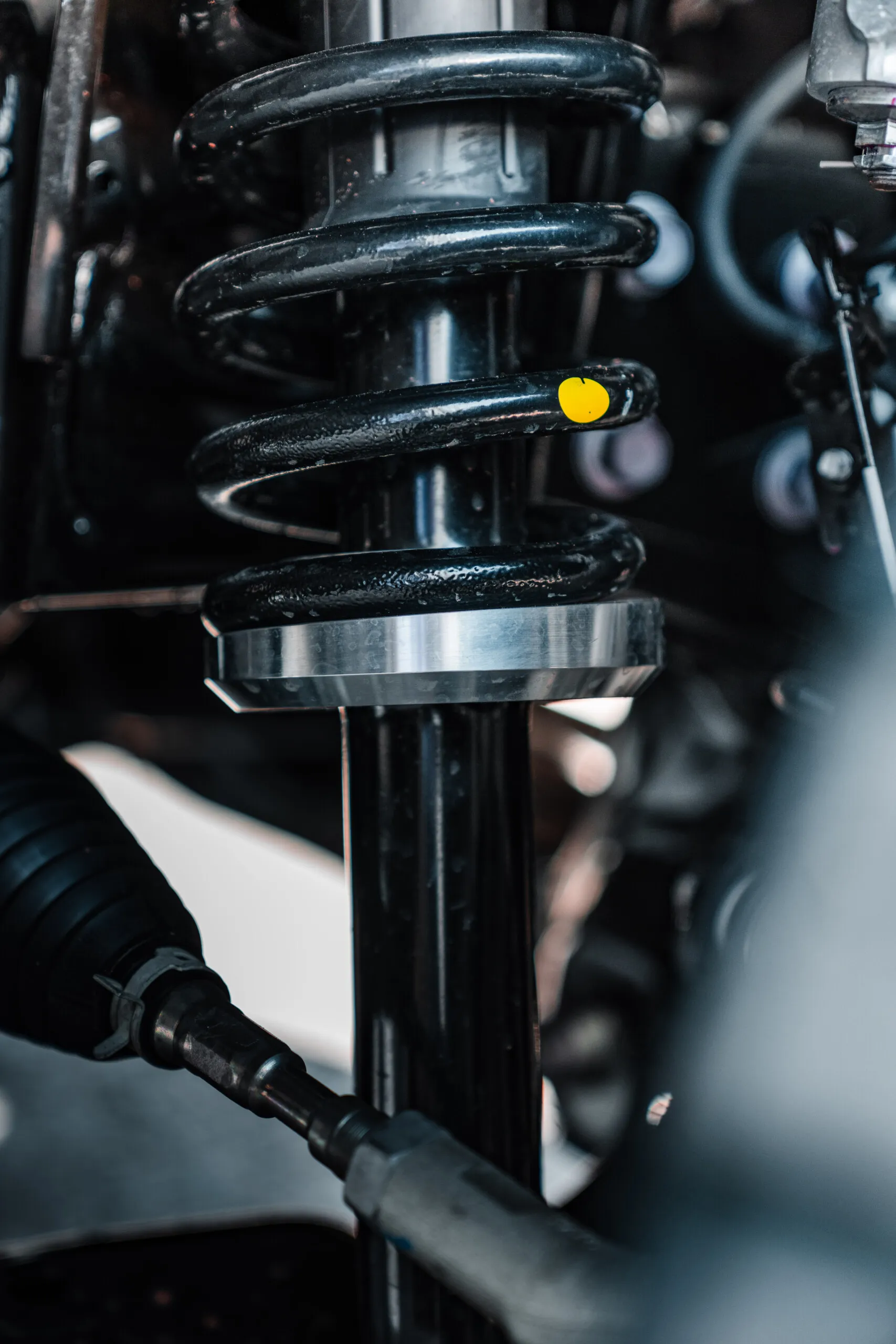

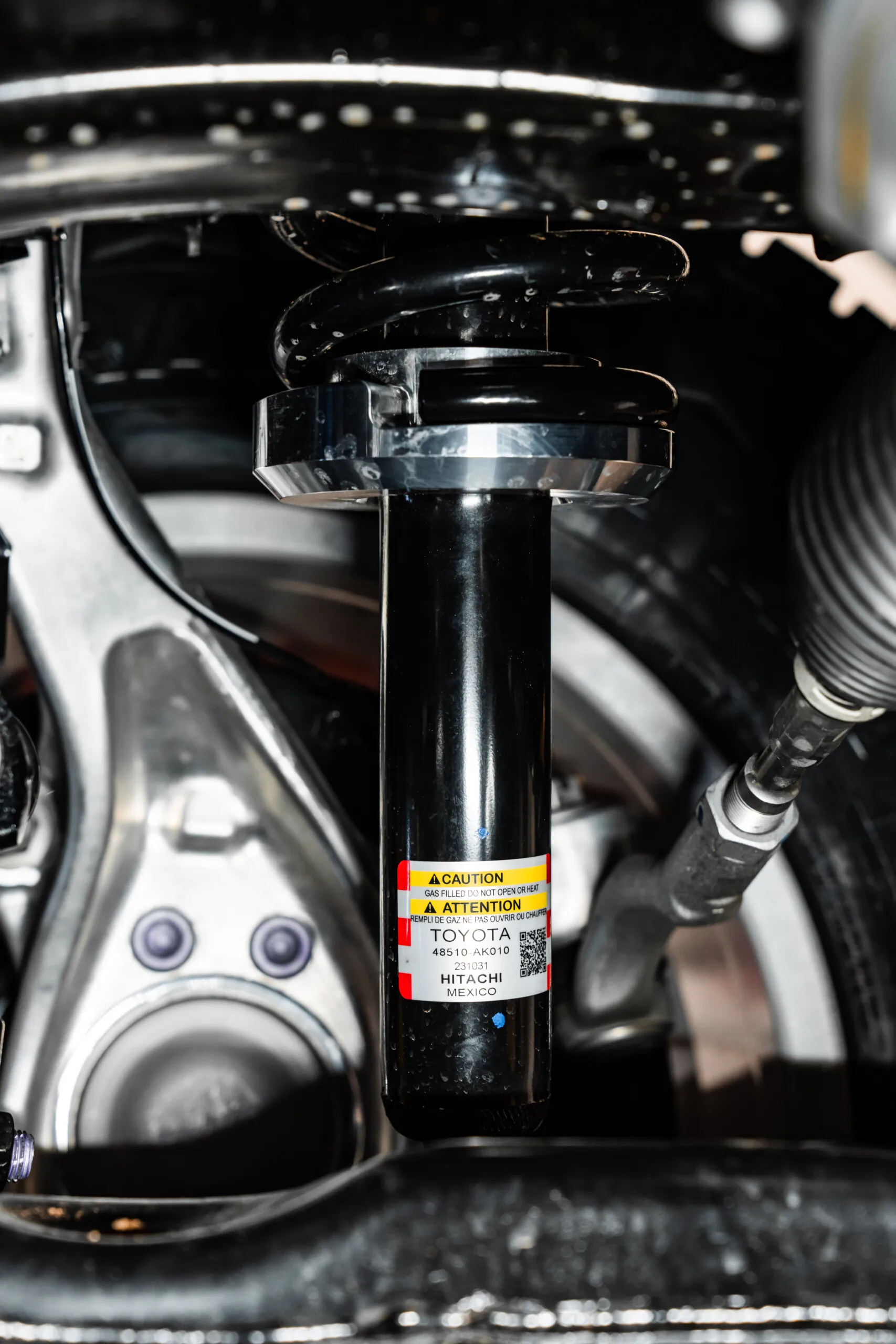

Note: Product photos are of prototype unit, finished product will be hard anodized black as advertised.

This kit provides the following lift 2.5″ in the front & .75″ in the rear for the following Trims:

• SR5
• TRD Off-Road
• TRD Sport
• For the Tacoma TRD Pro with Fox PRO Suspension equipped trucks  – expect 1.75″ (front lift) and .75″ (rear lift)
• Limited with AVS Suspension – expect 1.5” (front lift) and .75” (rear lift)

Lift Kit Options:

• FULL Preload Collar Lift Kit – providing lift for the front and rear of the truck
• FRONT-ONLY lift kit – giving you the ability to use the front only preload collars to bring the front-end higher – adds 2.5″ in the FRONT ONLY.
• REAR-ONLY lift kit – gives you the ability to add some more lift in the rear of the vehicle – adds .75″ for the REAR ONLY.



Weight	15 lbs
Dimensions	12 × 10 × 8 in
Model	SR5, TRD Sport, TRD Off-Road, Limited, TRD Pro
Full Kit / Front Only / Rear Only	FULL LIFT KIT (Front & Rear Lift), FRONT ONLY, REAR ONLY
Finish	Raw Aluminum, Black Anodize
